Cataloques

Cataloque (Engl.) [Download]

• File: 2,24 Mb
• Revision: 07.06.2010

Soft

Elekton-UV.12.01c [Download]

• File size: 4 372 638 b
• Revision: 24.01.2012

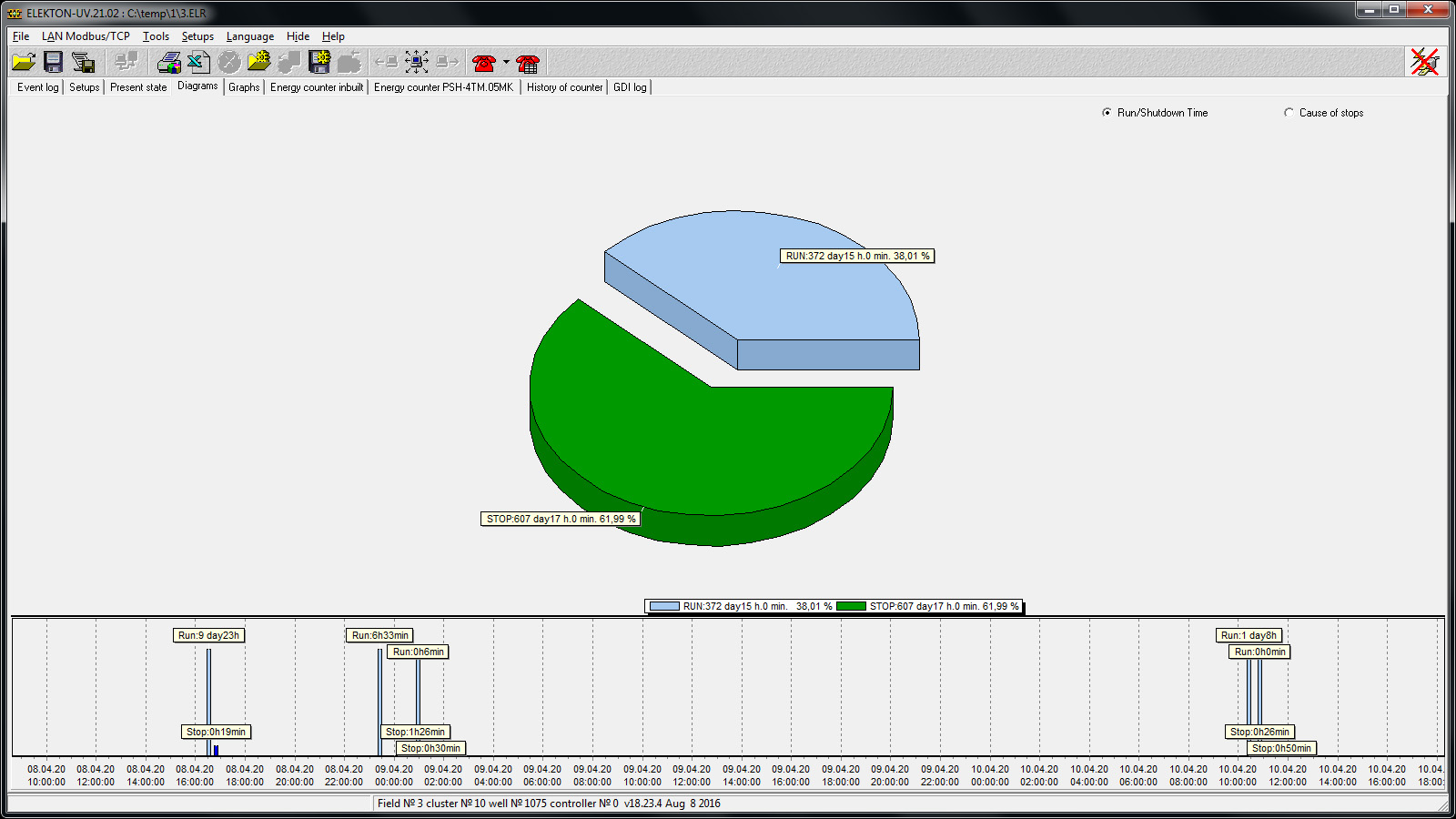

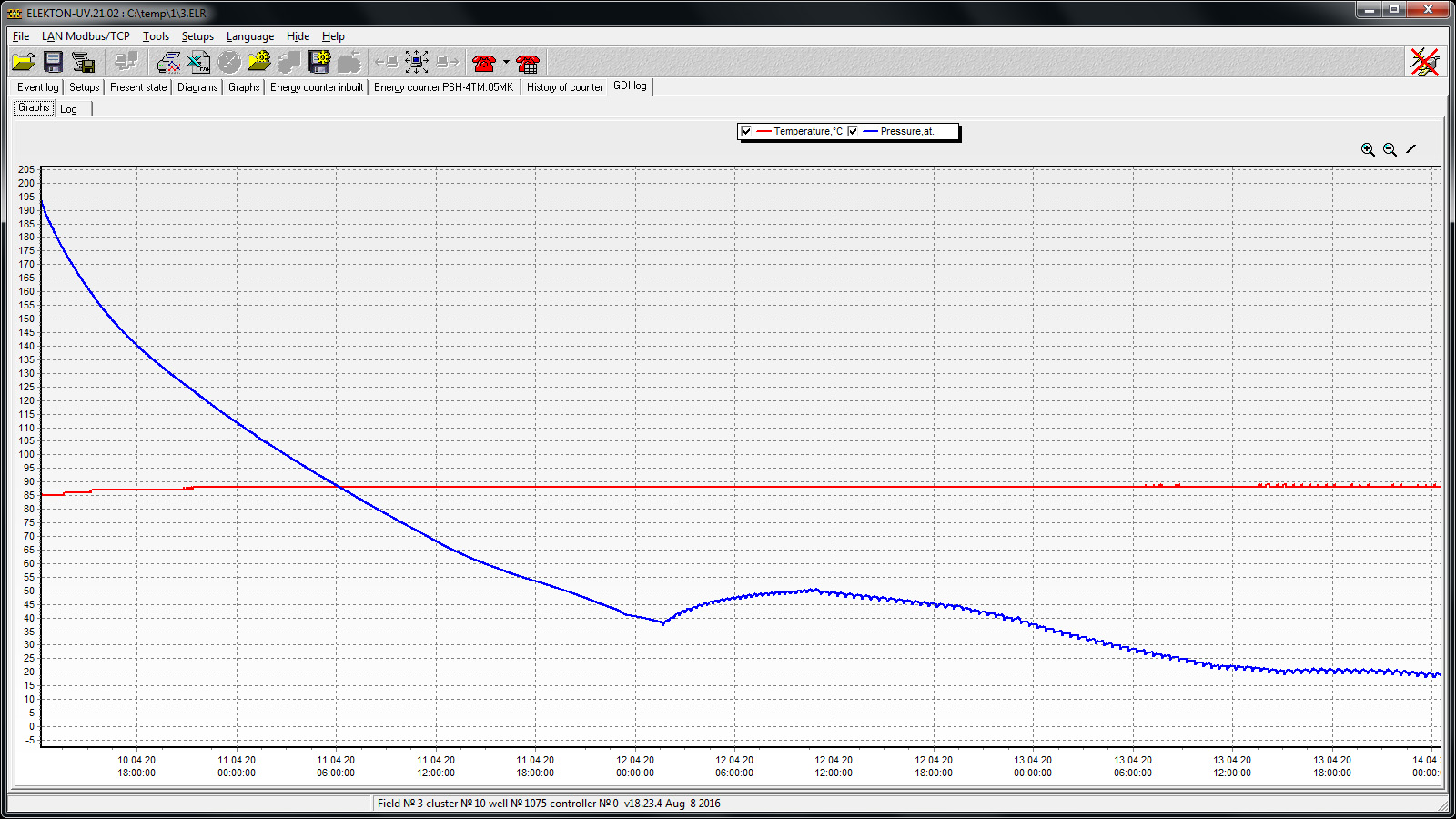

Universal software application Elekton-UV.12.01c is intended for reading-out and processing all the data from switchboard ELEKTON-04(05,07) and Read-out Units BSI-03M(04).

Events report log with current state and operating characteristics is read-out via standard port RS-232. The software makes visible on the PC display current status and following parameters:

• voltage
• currents and currents' disbalance
• insulance
• power factor
• loading
• pressure
• temperature
• date
• time
• operating time
• number of starts
• rotating speed
• alternation of phases
• number of under- and overloading restarts, restarts through other causes
• switching on and off with cause been specified
• number of well and well cluster

There is capability to change controller settings (to control both switchboard's operating mode and it's reaction to nominal parameters deviations) with visual control.

For switchboards manufactured after 01.01.2003: settings changing by operator are registered in the events report log with # and title of the setting, previous and new value, date and time of changing. Power cut and power-up with date and time specified are also fixed.

[elekton-09.12.2.pdf]

• File size (.pdf): 114 530 b
• Revision: 24.03.2010

Read-write address table with parameter's titles for switchboards ELEKTON-05 with controller ELEKTON-09 ver.9.12 - 9.22.

[elekton-09.26.zip]

• File size (.zip): 294 207 b
• Revision: 26.03.2010

Read-write address table with parameter's titles for switchboards ELEKTON-05 with controller ELEKTON-09 ver.9.22 - 9.26.

[elekton-09.29.zip]

• File size (.zip): 303 283 b
• Revision: 31.05.2010

Read-write address table with parameter's titles for switchboards ELEKTON-05 with controller ELEKTON-09 ver.9.26 and later.

[elekton-09.35.zip]

• File size (.zip): 319 599 b
• Revision: 29.05.2011

Read-write address table with parameter's titles for switchboards ELEKTON-05 with controller ELEKTON-09 ver.9.35 and later.

[elekton-08.06.pdf]

• File size (.pdf): 79 046 b
• Revision: 29.10.2008

Read-write address table with parameter's titles for switchboards ELEKTON-04, switchboards ELEKTON-07 and upgrade set ELEKTON-M with controller ELEKTON-08 ver. 8.06 - 8.09.

[elekton-08.10.pdf]

• File size (.pdf): 85 012 b
• Revision: 29.10.2008

Read-write address table with parameter's titles for switchboards ELEKTON-04, switchboards ELEKTON-07 and upgrade set ELEKTON-M with controller ELEKTON-08 ver. 8.10.

Soft for BSIVP-01:
Last Update [Download]

• File: 70.213 kb
• Revision: 15.08.2007

USB Drivers [Download]

• File size: 3.443 018 kb
• Revision: 15.08.2007

Programmator [Download]

• File size: 263.454 kb
• Revision: 15.08.2007

Manual [Download]

• File size: 159.275 kb
• Revision: 15.08.2007

Soft archives

Collection of soft for switchboards ELEKTON-04/05/06 manufactured before 2004, as well as manuals and information for test benches ИС-01, ИС-02M.03 and Read-out Unit БСИ-01.
