ELEKTON-SSC Soft-Start Coupling for ESP and PCP



Certificate of Conformance

  Purpose and application

The ELEKTON-SSC soft-start coupling facilitates the start of an electric submersible motor on ESP and PCP, and prevent the backspin effect.

     The principle of Soft-Start Coupling (Video)


Starting Clutch
Soft-Start Coupling
  Functional capabilities

The ELEKTON-SSC soft-start coupling facilitates the start of an electric submersible motor on ESP and PCP, and prevent the backspin effect.

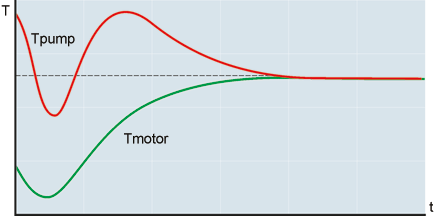

Fig1


Tpump, Tmotor Pump shafts torque or ESP motors shaft torque, respectively

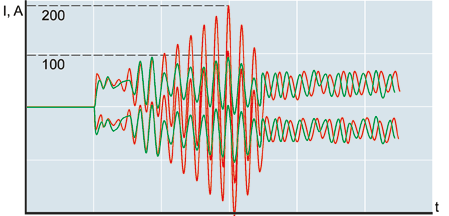

Fig2


Starting currents without SSC

Starting currents with SSC
t electric submersible pump starting time

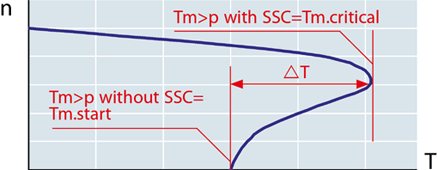

Fig3

n ESP motors RPM, T ESP motor's shaft torque

Tm.start Starting torque from motor direct start
Tm.critical ESP motor critical torque
Tm>p without SSC Pump torque overcome by motor starting torque (without SSC)
Tm>p with SSC Pump torque overcome by motor torque with SSC
ΔT Torque increment on the motors shaft with SSC



  Main technical specifications

Operation factors ELEKTON-SSC-1-92-125-V5 ELEKTON-SSC-1-103-250-V5
Rotation speed, RPM, rated/maximum 3000 4000
Starting torque-to-nominal torque ratio, minimum 7
Maximum transmitted power 125 250
Maximum torque at output shaft at pump stall, Nm 600 800
Filling oil volume, l 4 5
Ambient temperature, maximum, C 150
Overall dimensions, mm  Ø=92, L=1550  Ø=103, L=1650
Weight, kg (not more) 60 75
