Catalogue of equipment: Active Power Filter ELEKTON-FSA for
VSD on Rated Current from 630 up to 1600 A
|
|

|
 |
 |
Purpose and application |  |
|
The Active Power Filter ELEKTON-FSA is intended for effective decrease of the higher harmonic components' level HHC of the VSD switchboard's 3-phase voltage supply and for reactive power compensation, which is load consumed.
The Filter ELEKTON-FSA is plugged between transformer substation and VSD switchboard's input. Special adjustments and regulations are not required.
The rated operating current of the Active Power Filter defines the consumed power of the higher harmonic components, which are generated to mains supply.
|
|

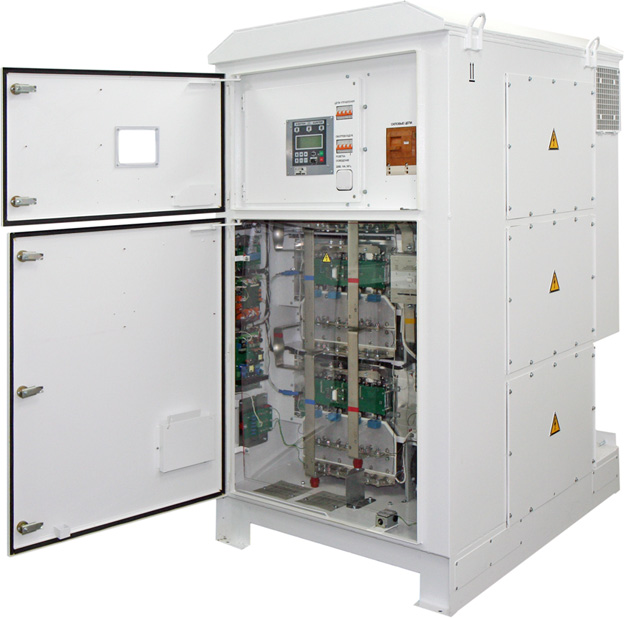

 Active Power Filter ELEKTON-FSA-630/1600"
|
 |
 |
Functional capabilities |  |
|
The higher harmonic components (HHÑ) increasing in power circuit is caused, first of all, by wide use of converting techniques. The Active Power Filters is the most effective way of elimination of the higher harmonic components.
The Active Power Filter represents the controlled current source connected in parallel with loading, generating the higher harmonic components. This controlled current source generates the same and the same size as a current loading but in an antiphase. So, a current of the first harmonic (50 Hz) consumes only by loading of a mains.
- Three-phase HHÑ compensation of current up to 40-th harmonic inclusively
- Low power losses (3 … 5 % from rated power of loading)
- The built-in electronic overload protection
- Port RS-485
- Controller ELEKTON-10.1
- Displaying on the controller of the following: harmonic components and voltage nonsinusoidality factor, supply current and load current loading
- History
|
|

Certificate of Conformance [zoom]
|
 |
 |
Specifications |  |
|
Model |
Rated working current, À* |
Max. load current, À** |
Weight, kg |
Dimensions, mm |
ELEKTON-FSA-160/400 |
100 |
250 |
290 |
1845õ840õ830 |
ELEKTON-FSA-160/400 |
160 |
400 |
420 |
1990õ950õ905 |
ELEKTON-FSA-250/630 |
250 |
630 |
440 |
1990õ950õ905 |
ELEKTON-FSA-400/1000 |
400 |
1000 |
492 |
1990õ950õ905 |
ELEKTON-FCA-630/1600 |
630 |
1600 |
890 |
2016õ1204õ1603 |
KUinp, ÊIinp= not more than 5%***
* - maximum root-mean-square current of HHÑ.
** - maximum consumption current of Switchboard ELEKTON-05 in length modulation mode.
*** - under condition of input voltage (no VSD Switchboard involved) distortion coefficient being less than 2% while filter operates uder rated load.
Active Power Filter rated working current determines extreme suppressed power of HHÑ which are generated into main supply.
|
|
 Connection wiring |
 |
 |
Features |  |
|
There are coefficients of current and voltage harmonicity curve distortion (KUinp, ÊIinp) of metering data for frequency converter ELEKTON-05-400 presented
Parameters | No filter | Filter |
Input voltage |

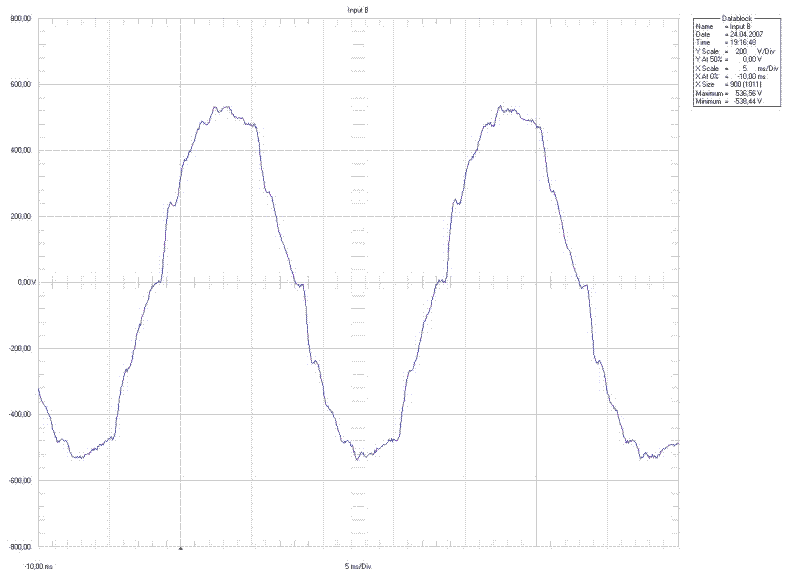

Input voltage - No Filter
|

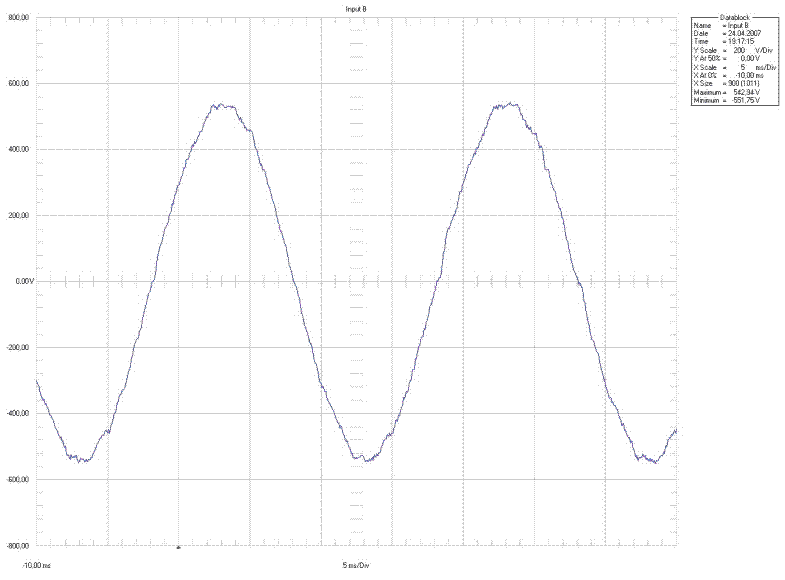

Input voltage - Filter
|

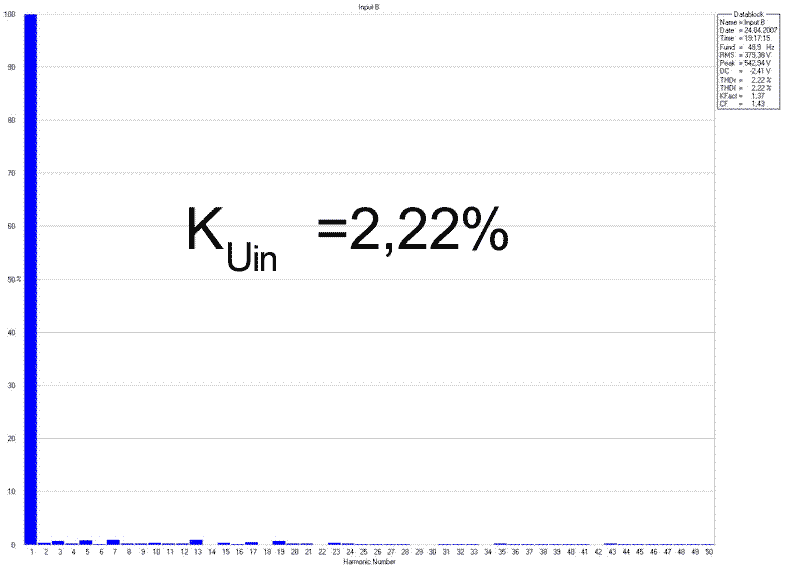

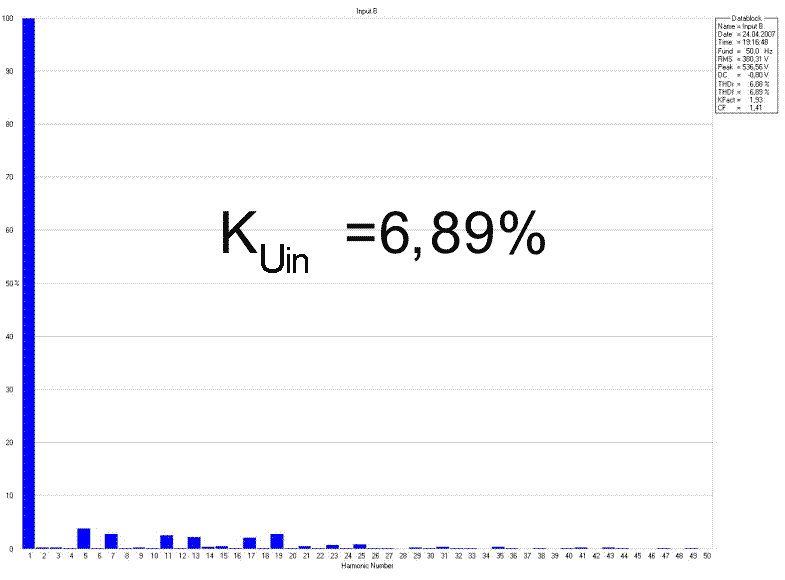

Input voltage harmonic structure |
|
|
Input current |

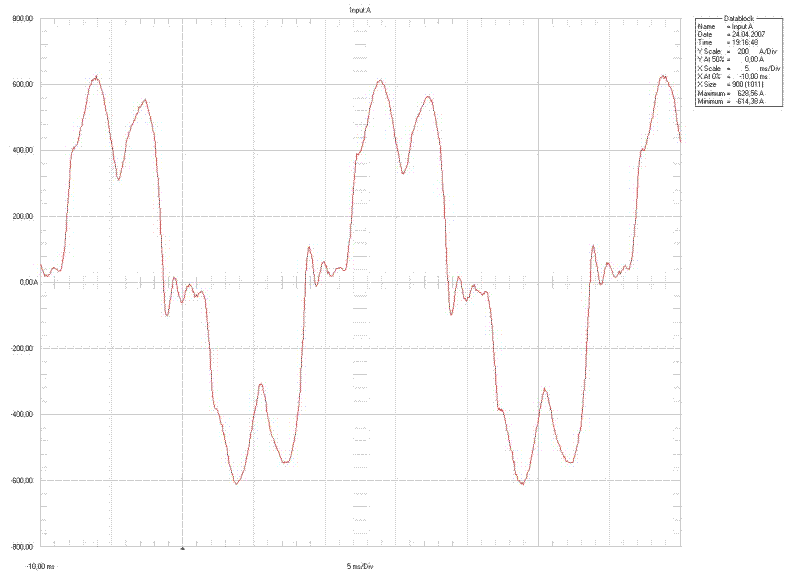

Input current - No Filter
|

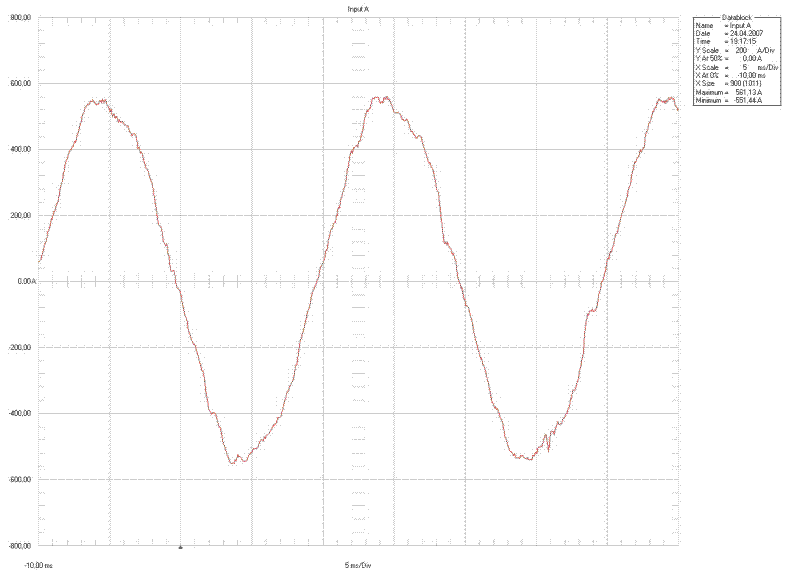

Input current - Filter
|

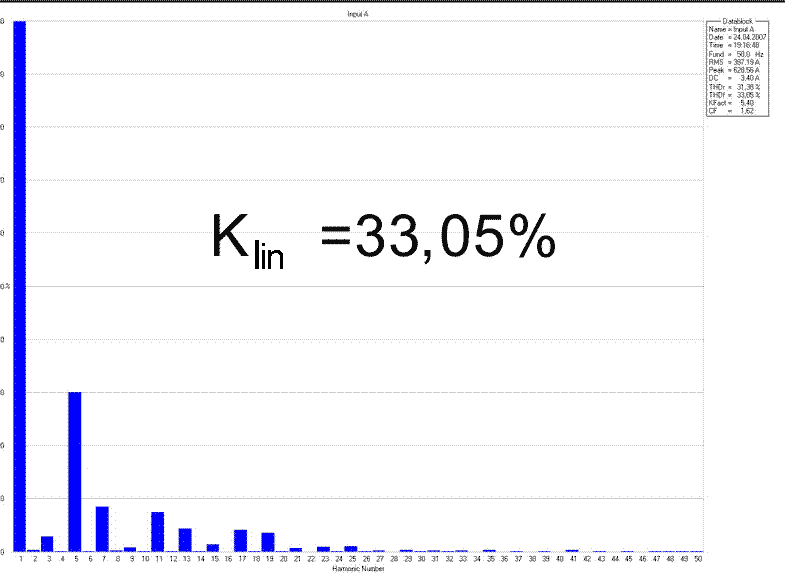

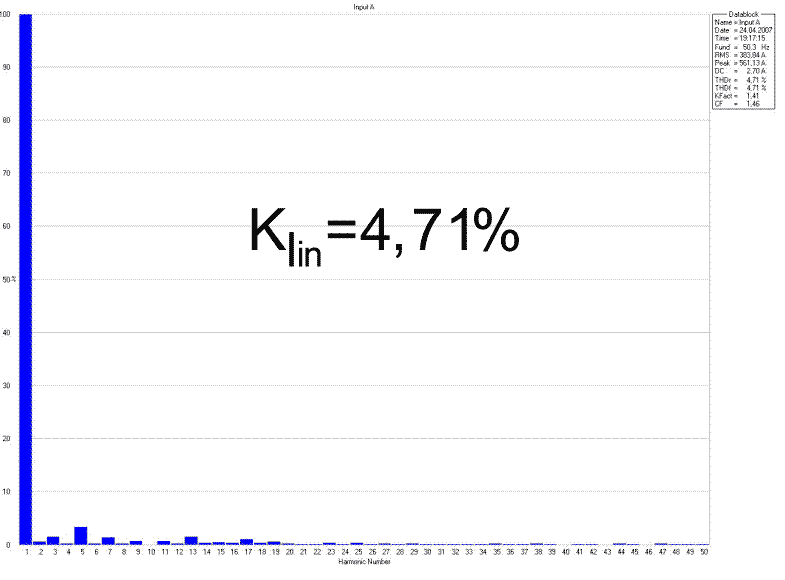

Input current harmonic structure |
|
|
|
