output filters for frequency converters

Purpose and application

Ouput filters are intended for suppression of high-frequency harmonics of carrier frequency of three-phase output voltage of switchboards with frequency control.

Output filter is connected up between switchboard's output and step-up transformer. Filter's rated curent circuit should be corresponding with rated output curent of the switchboard.

Functional capabilities

Output filters for frequency converters for rated current 160...1200А. Coefficient of current and voltage harmonicity curve distortion:

   No filter:

      K_Uoutp= 46%
      К_Ioutp= 19%

   Filter:

      K_Uoutp, К_Ioutp= not more than 5%

Specifications

Model	Rated working current, А	Weight, kg	Dimensions, mm
ELEKTON-F160	160	210	1588х804х925
ELEKTON-F250	250	210	1588х804х925
ELEKTON-F400	400	230	1588х804х925
ELEKTON-F630	630	380	1835х1004х1105
ELEKTON-F800	800	380	1835х1004х1105
ELEKTON-F1000	1000	450	1900х1234х1094
ELEKTON-F1200	1200	490	1900х1234х1094

Features

There are coefficients of current and voltage harmonicity curve distortion (K_Uoutp, К_Ioutp) of metering data for frequency converter ELEKTON-05-400 presented

Parameters	No filter	Filter
Output voltage	Output voltage - No Filter	Output voltage - Filter

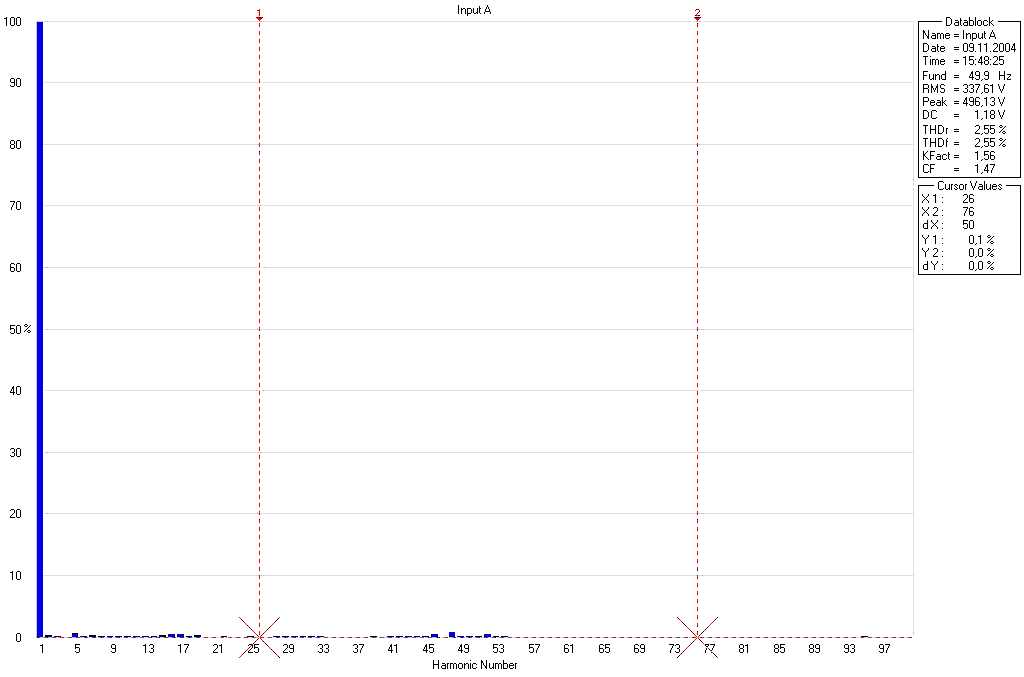

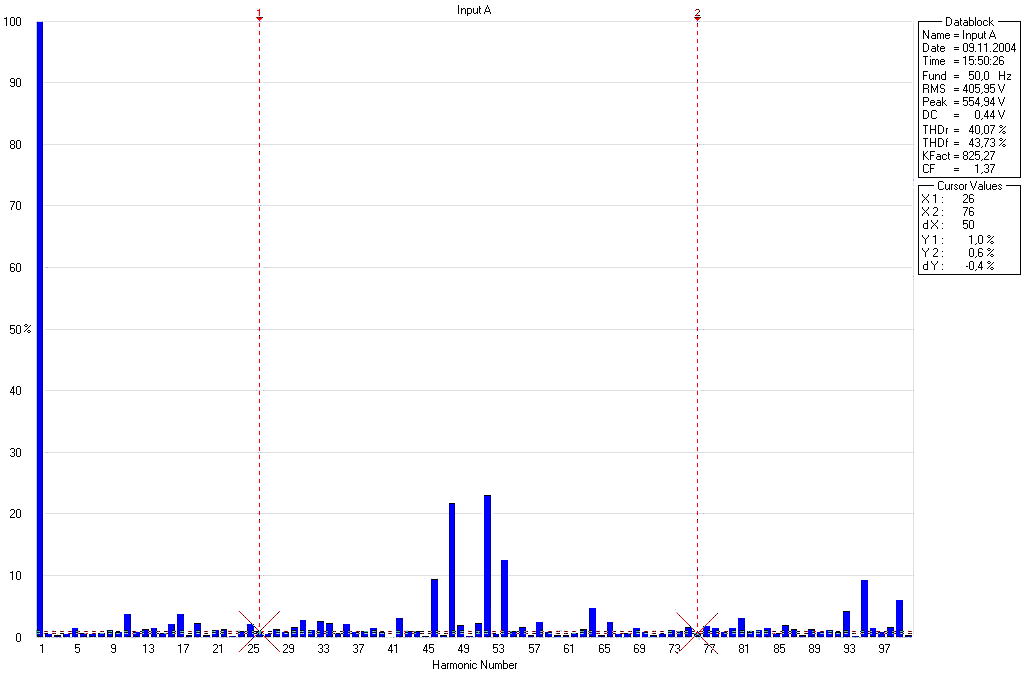

Output voltage harmonic structure	KUoutp=43,73% Output voltage harmonic structure - No Filter	KUoutp=2,55% Output voltage harmonic structure - Filter

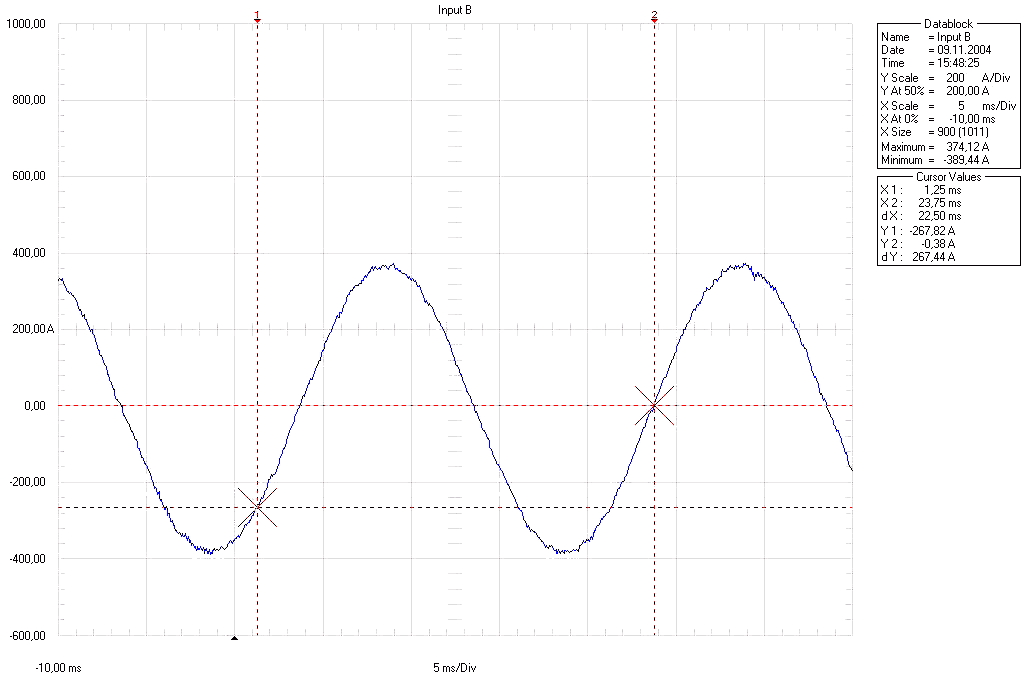

Output current	Output current - No Filter	Output current - Filter

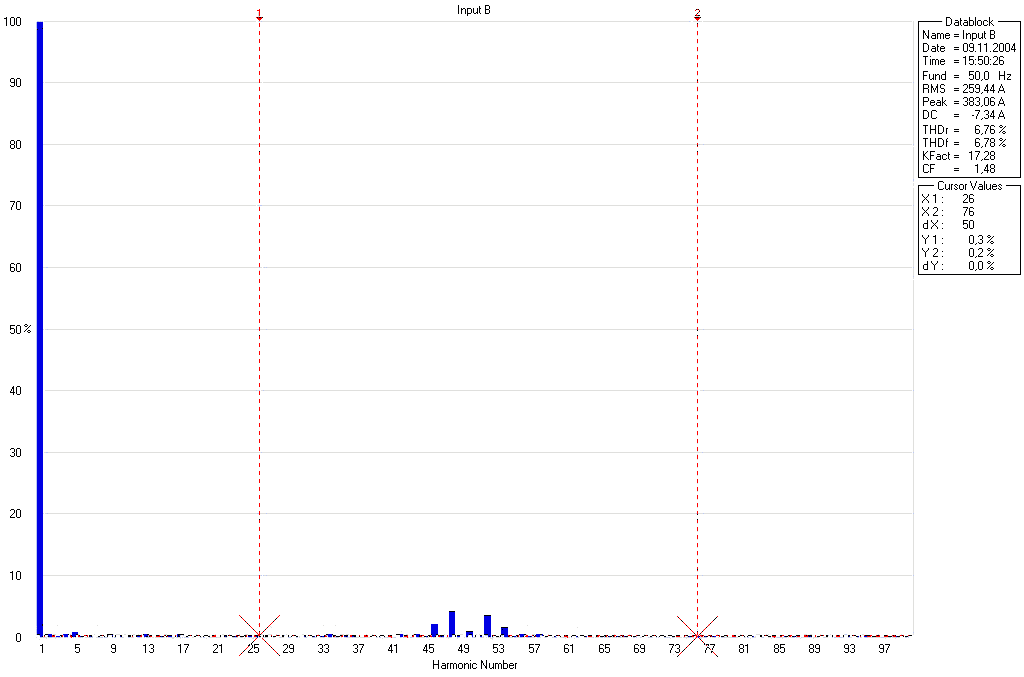

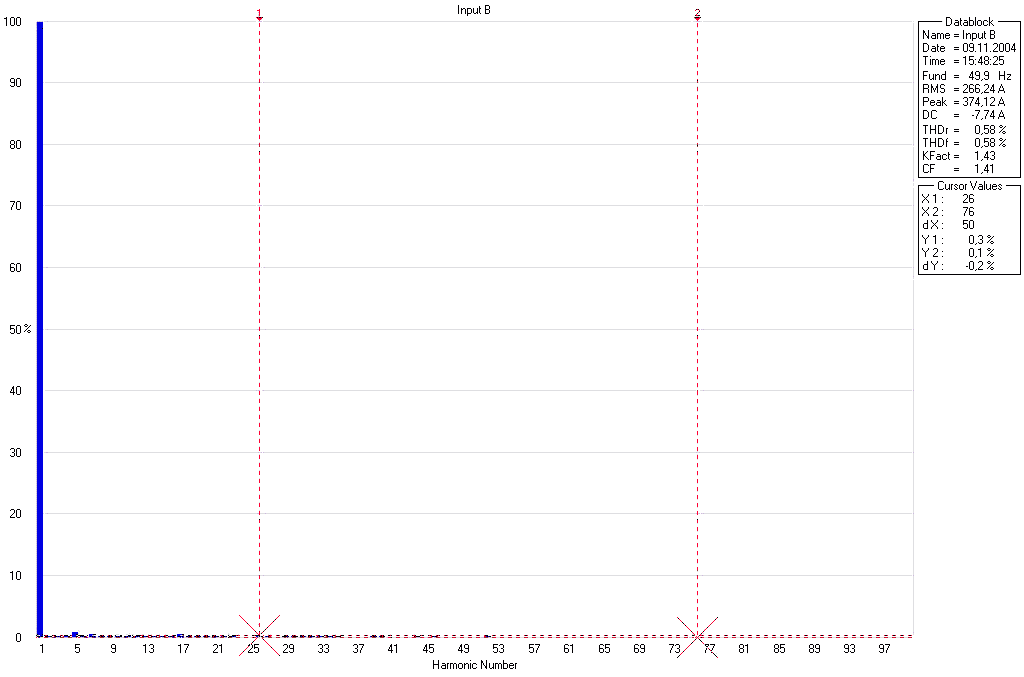

Output current harmonic structure	КIoutp=6,76 Output current harmonic structure - No Filter	КIoutp=0,58% Output current harmonic structure - Filter
